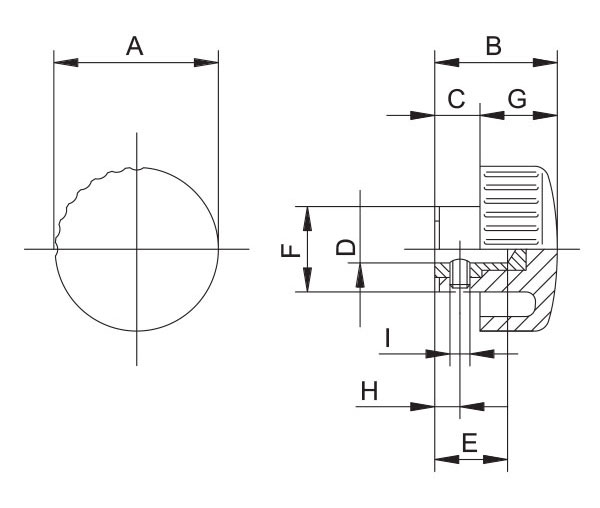

V3.HANDWHEEL WITH BLIND SMOOTH BUSHING
| CODE | ITEM | A | B | C | D | E | F | G | H | I | PCS BOX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EMV3256000 | V3/25/BLC - D6 | 25 | 17 | 6 | 6 | 10 | 14 | 11 | 100 | ||
| EMV3256099 | V3/25/BLC - D6 + GRANO | 25 | 17 | 6 | 6 | 10 | 14 | 11 | 3,5 | M4 | 100 |
MATERIAL
Thermoplastic with a high mechanical resistance. Heat resistant materials or materials with other resistance grades are available upon demand.
BUSHING
Ot58 brass. Bushings made of other materials are available. For special uses, handwheels can be supplied with customised bushings.
COLOUR
Black. Wide range of colours available for suitable quantities.
LOT
Minimun production 500 pcs
CERTIFICATIONS
