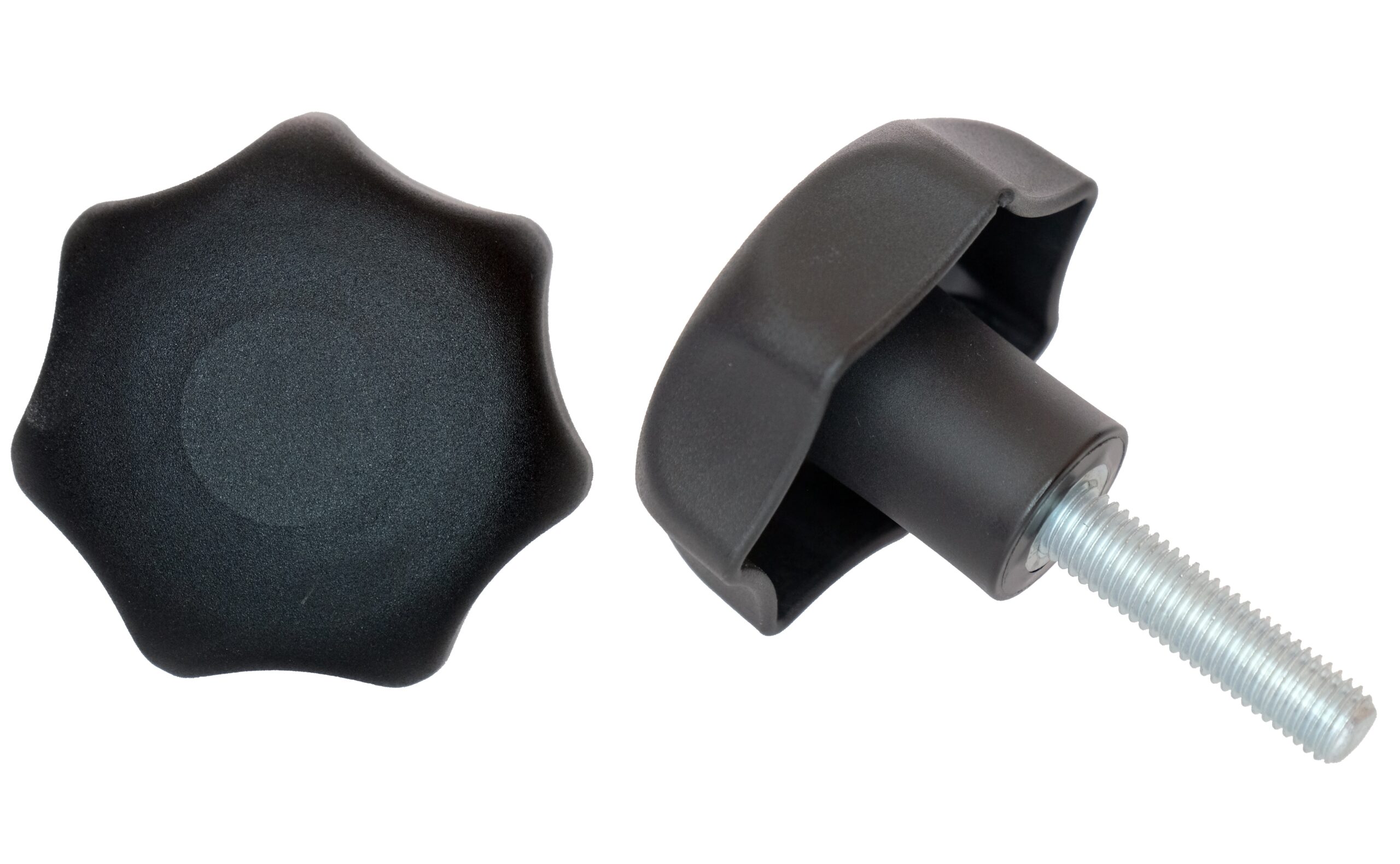

HANDWHEEL WITH SCREW

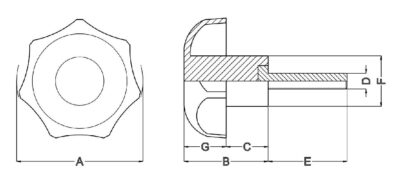

CODE	ITEM	A	B	C	D	E	F	G	PCS BOX
EMVD801020	VD/80/V - M10x20	80	53	25	M10	20	29	28	50
EMVD801025	VD/80/V - M10x25	80	53	25	M10	25	29	28	50
EMVD801030	VD/80/V - M10x30	80	53	25	M10	30	29	28	50
EMVD801035	VD/80/V - M10x35	80	53	25	M10	35	29	28	50
EMVD801040	VD/80/V - M10x40	80	53	25	M10	40	29	28	50
EMVD801050	VD/80/V - M10x50	80	53	25	M10	50	29	28	50
EMVD801060	VD/80/V - M10x60	80	53	25	M10	60	29	28	50
EMVD801220	VD/80/V - M12x20	80	53	25	M12	20	29	28	50
EMVD801230	VD/80/V - M12x30	80	53	25	M12	30	29	28	50
EMVD801240	VD/80/V - M12x40	80	53	25	M12	40	29	28	50
EMVD801250	VD/80/V - M12x50	80	53	25	M12	50	29	28	50
EMVD801260	VD/80/V - M12x60	80	53	25	M12	60	29	28	50
EMVD801420	VD/80/V - M14x20	80	53	25	M14	20	29	28	25
EMVD801430	VD/80/V - M14x30	80	53	25	M14	30	29	28	25
EMVD801440	VD/80/V - M14x40	80	53	25	M14	40	29	28	25
EMVD801450	VD/80/V - M14x50	80	53	25	M14	50	29	28	25
EMVD801460	VD/80/V - M14x60	80	53	25	M14	60	29	28	25
EMVD801630	VD/80/V - M16x30	80	53	25	M16	30	29	28	25
EMVD801640	VD/80/V - M16x40	80	53	25	M16	40	29	28	25
EMVD801650	VD/80/V - M16x50	80	53	25	M16	50	29	28	25
EMVD801660	VD/80/V - M16x70VD/80/V - M16x60	80	53	25	M16	60	29	28	25
EMVD801670	VD/80/V - M16x70	80	53	25	M16	70	29	28	25
EMVD801680	VD/80/V - M16x80					80			25

VD.HANDWHEEL WITH SCREW
