PMGX.FOOT WITH BPS BASE AND STAINLESS STEEL PIN WITH NON-SLIP

PMGX

FOOT WITH BPS BASE AND STAINLESS STEEL PIN WITH NON-SLIP

FOOT WITH BPS BASE AND STAINLESS STEEL PIN WITH NON-SLIP

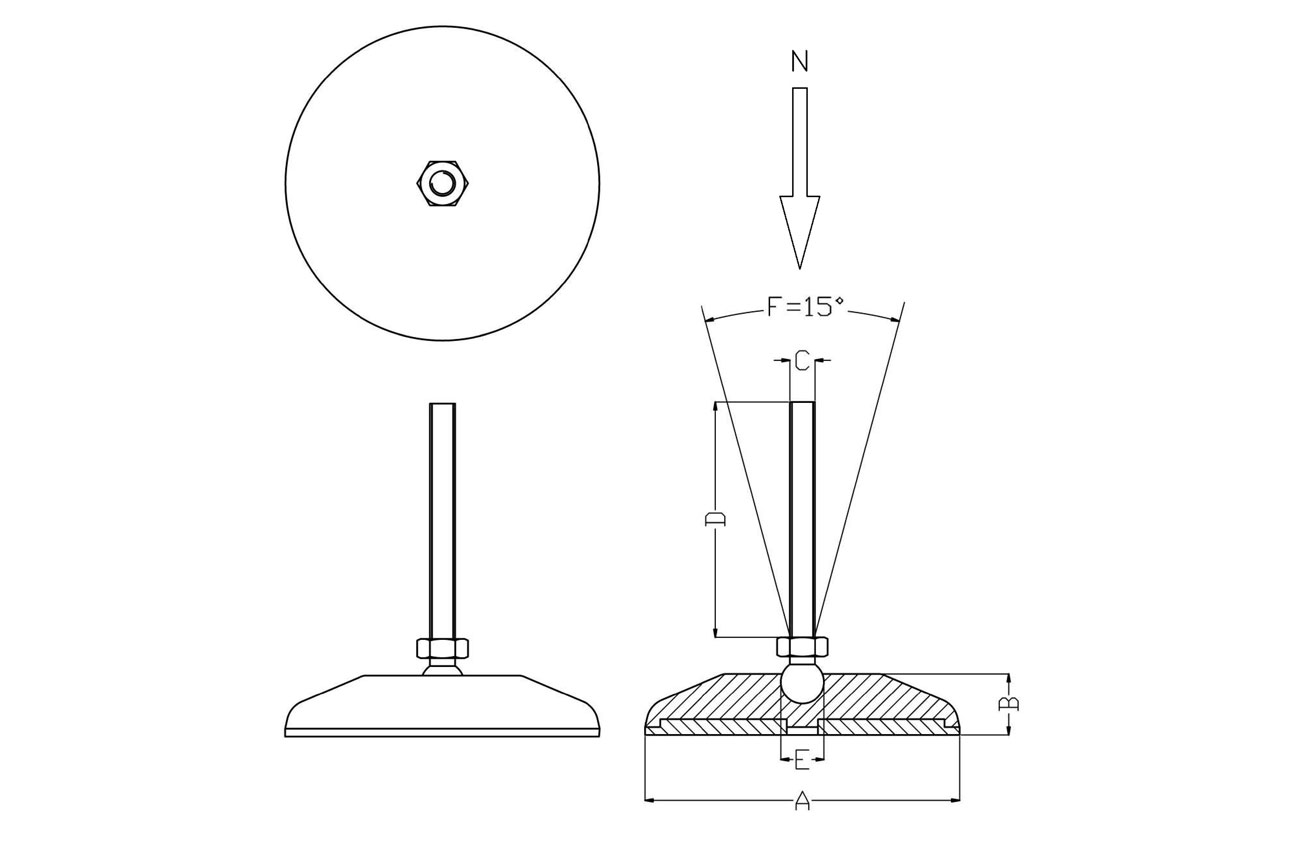

CODE	ITEM	A	B	C	D	E	CARICO STATICO N	PCS BOX
PMGX002005	PMGX00/40 - M8 x 45	40	15,5	M8	45	13,8	10000	8
PMGX002010	PMGX00/40 - M8 x 70	40	15,5	M8	70	13,8	10000	8
PMGX002015	PMGX00/40 - M10 x 45	40	15,5	M10	45	13,8	10000	8
PMGX002020	PMGX00/40 - M10 x 70	40	15,5	M10	70	13,8	10000	8
PMGX002025	PMGX00/40 - M10 x 100	40	15,5	M10	100	13,8	10000	8
PMGX002030	PMGX00/40 - M12 x 45	40	15,5	M12	45	13,8	10000	8
PMGX002035	PMGX00/40 - M12 x 70	40	15,5	M12	70	13,8	10000	8
PMGX002040	PMGX00/40 - M12 x 100	40	15,5	M12	100	13,8	10000	8
PMGX002045	PMGX00/40 - M12 x 125	40	15,5	M12	125	13,8	10000	8
PMGX002050	PMGX00/40 - M14 x 75	40	15,5	M14	75	13,8	10000	8
PMGX002055	PMGX00/40 - M14 x 125	40	15,5	M14	125	13,8	10000	8
PMGX002060	PMGX00/40 - M16 x 60	40	15,5	M16	60	13,8	10000	8
PMGX002065	PMGX00/40 - M16 x 110	40	15,5	M16	110	13,8	10000	8
PMGX002070	PMGX00/40 - M16 x 145	40	15,5	M16	145	13,8	10000	8
PMGX002075	PMGX00/40 - M16 x 175	40	15,5	M16	175	13,8	10000	4
PMGX003005	PMGX00/50 - M8 x 45	50	16,5	M8	45	13,8	10000	8
PMGX003010	PMGX00/50 - M8 x 70	50	16,5	M8	70	13,8	10000	8
PMGX003015	PMGX00/50 - M10 x 45	50	16,5	M10	45	13,8	10000	8
PMGX003020	PMGX00/50 - M10 x 70	50	16,5	M10	70	13,8	10000	8
PMGX003025	PMGX00/40 - M10 x 100	50	16,5	M10	100	13,8	10000	8
PMGX003030	PMGX00/50 - M12 x 45	50	16,5	M12	45	13,8	10000	8
PMGX003035	PMGX00/50 - M12 x 70	50	16,5	M12	70	13,8	10000	8
PMGX003040	PMGX00/50 - M12 x 100	50	16,5	M12	100	13,8	10000	8
PMGX003045	PMGX00/50 - M12 x 125	50	16,5	M12	125	13,8	10000	8
PMGX003050	PMGX00/50 - M14 x 75	50	16,5	M14	75	13,8	10000	8
PMGX003055	PMGX00/50 - M14 x 125	50	16,5	M14	125	13,8	10000	8
PMGX003060	PMGX00/50 - M16 x 60	50	16,5	M16	60	13,8	10000	8
PMGX003065	PMGX00/50 - M16 x 110	50	16,5	M16	110	13,8	10000	8
PMGX003070	PMGX00/50 - M16 x 145	50	16,5	M16	145	13,8	10000	8
PMGX003075	PMGX00/50 - M16 x 175	50	16,5	M16	175	13,8	10000	4
PMGX004005	PMGX00/60 - M8 x 45	60	19	M8	45	13,8	12000	8
PMGX004010	PMGX00/60 - M8 x 70	60	19	M8	70	13,8	12000	8
PMGX004015	PMGX00/60 - M10 x 45	60	19	M10	45	13,8	13000	8
PMGX004020	PMGX00/60 - M10 x 70	60	19	M10	70	13,8	13000	8
PMGX004025	PMGX00/60 - M10 x 100	60	19	M10	100	13,8	13000	8
PMGX004030	PMGX00/60 - M12 x 45	60	19	M12	45	13,8	14000	8
PMGX004035	PMGX00/60 - M12 x 70	60	19	M12	70	13,8	14000	8
PMGX004040	PMGX00/60 - M12 x 100	60	19	M12	100	13,8	14000	8
PMGX004045	PMGX00/60 - M12 x 125	60	19	M12	125	13,8	14000	8
PMGX004050	PMGX00/60 - M14 x 75	60	19	M14	75	13,8	14000	8
PMGX004055	PMGX00/60 - M14 x 125	60	19	M14	125	13,8	14000	8
PMGX004060	PMGX00/60 - M16 x 60	60	19	M16	60	13,8	14000	8
PMGX004065	PMGX00/60 - M16 x 110	60	19	M16	110	13,8	14000	8
PMGX004070	PMGX00/60 - M16 x 145	60	19	M16	145	13,8	14000	8
PMGX004075	PMGX00/60 - M16 x 175	60	19	M16	175	13,8	14000	4
PMGX014005	PMGX01/60 - M16 x 60	60	19	M16	60	18,8	16000	4
PMGX014010	PMGX01/60 - M16 x 110	60	19	M16	110	18,8	16000	4
PMGX014015	PMGX01/60 - M16 x 145	60	19	M16	145	18,8	16000	4
PMGX014020	PMGX01/60 - M16 x 175	60	19	M20	175	18,8	16000	4
PMGX014025	PMGX01/60 - M16 x 75	60	19	M20	75	18,8	17000	4
PMGX014030	PMGX01/60 - M20 x 110	60	19	M20	110	18,8	17000	4
PMGX014035	PMGX01/60 - M20 x 145	60	19	M20	145	18,8	17000	4
PMGX014040	PMGX01/60 - M20 x 195	60	19	M24	195	18,8	17000	4
PMGX014045	PMGX01/60 - M24 x 85	60	19	M24	85	18,8	17000	4
PMGX014050	PMGX01/60 - M24 x 115	60	19	M24	115	18,8	17000	4
PMGX014055	PMGX01/60 - M24 x 145	60	19	M24	145	18,8	17000	4
PMGX014060	PMGX01/60 - M24 x 195	60	19	M24	195	18,8	17000	4
PMGX005005	PMGX00/80 - M8 x 45	80	19	M8	45	13,8	12000	8
PMGX005010	PMGX00/80 - M8 x 70	80	19	M8	70	13,8	12000	8
PMGX005015	PMGX00/80 - M10 x 45	80	19	M10	45	13,8	13000	8
PMGX005020	PMGX00/80 - M10 x 70	80	19	M10	70	13,8	13000	8
PMGX005025	PMGX00/80 - M10 x 100	80	19	M10	100	13,8	13000	8
PMGX005030	PMGX00/80 - M12 x 45	80	19	M12	45	13,8	14000	8
PMGX005035	PMGX00/80 - M12 x 70	80	19	M12	70	13,8	14000	8
PMGX005040	PMGX00/80 - M12 x 100	80	19	M12	100	13,8	14000	8
PMGX005045	PMGX00/80 - M12 x 125	80	19	M12	125	13,8	14000	8
PMGX005050	PMGX00/80 - M14 x 75	80	19	M14	75	13,8	14000	8
PMGX005055	PMGX00/80 - M14 x 125	80	19	M14	125	13,8	14000	8
PMGX005060	PMGX00/80 - M16 x 60	80	19	M16	60	13,8	14000	8
PMGX005065	PMGX00/80 - M16 x 110	80	19	M16	110	13,8	14000	8
PMGX005070	PMGX00/80 - M16 x 145	80	19	M16	145	13,8	14000	8
PMGX005075	PMGX00/80 - M16 x 175	80	19	M16	175	13,8	14000	4
PMGX015005	PMGX01/80 - M16 x 60	80	19	M16	60	18,8	16000	4
PMGX015010	PMGX01/80 - M16 x 110	80	19	M16	110	18,8	16000	4
PMGX015015	PMGX01/80 - M16 x 145	80	19	M16	145	18,8	16000	4
PMGX015020	PMGX01/80 - M16 x 175	80	19	M16	175	18,8	16000	4
PMGX015025	PMGX01/80 - M20 x 75	80	19	M20	75	18,8	17000	4
PMGX015030	PMGX01/80 - M20 x 110	80	19	M20	110	18,8	17000	4
PMGX015035	PMGX01/80 - M20 x 145	80	19	M20	145	18,8	17000	4
PMGX015040	PMGX01/80 - M20 x 195	80	19	M20	195	18,8	17000	4
PMGX015045	PMGX01/80 - M24 x 85	80	19	M24	85	18,8	17000	4
PMGX015050	PMGX01/80 - M24 x 115	80	19	M24	115	18,8	17000	4
PMGX015055	PMGX01/80 - M24 x 145	80	19	M24	145	18,8	17000	4
PMGX015060	PMGX01/80 - M24 x 195	80	19	M24	195	18,8	17000	4
PMGX006005	PMGX00/100 - M8 x 45	100	19,5	M8	45	13,8	14000	8
PMGX006010	PMGX00/100 - M8 x 70	100	19,5	M8	70	13,8	14000	8
PMGX006015	PMGX00/100 - M10 x 45	100	19,5	M10	45	13,8	16000	8
PMGX006020	PMGX00/100 - M10 x 70	100	19,5	M10	70	13,8	16000	8
PMGX006025	PMGX00/100 - M10 x 100	100	19,5	M10	100	13,8	16000	8
PMGX006030	PMGX00/100 - M12 x 45	100	19,5	M12	45	13,8	16000	8
PMGX006035	PMGX00/100 - M12 x 70	100	19,5	M12	70	13,8	16000	8
PMGX006040	PMGX00/100 - M12 x 100	100	19,5	M12	100	13,8	16000	8
PMGX006045	PMGX00/100 - M12 x 125	100	19,5	M12	125	13,8	16000	8
PMGX006050	PMGX00/100 - M14 x 75	100	19,5	M14	75	13,8	18000	8
PMGX006055	PMGX00/100 - M14 x 125	100	19,5	M14	125	13,8	18000	8
PMGX006060	PMGX00/100 - M16 x 60	100	19,5	M16	60	13,8	18000	8
PMGX006065	PMGX00/100 - M16 x 110	100	19,5	M16	110	13,8	18000	8
PMGX006070	PMGX00/100 - M16 x 145	100	19,5	M16	145	13,8	18000	8
PMGX006075	PMGX00/100 - M16 x 175	100	19,5	M16	175	13,8	18000	4
PMGX016005	PMGX01/100 - M16 x 60	100	19,5	M16	60	18,8	20000	4
PMGX016010	PMGX01/100 - M16 x 110	100	19,5	M16	110	18,8	20000	4
PMGX016015	PMGX01/100 - M16 x 145	100	19,5	M16	145	18,8	20000	4
PMGX016020	PMGX01/100 - M16 x 175	100	19,5	M16	175	18,8	20000	4
PMGX016025	PMGX01/100 - M20 x 75	100	19,5	M20	75	18,8	22000	4
PMGX016030	PMGX01/100 - M20 x 110	100	19,5	M20	110	18,8	22000	4
PMGX016035	PMGX01/100 - M20 x 145	100	19,5	M20	145	18,8	22000	4
PMGX016040	PMGX01/100 - M20 x 195	100	19,5	M20	195	18,8	22000	4
PMGX016045	PMGX01/100 - M24 x 85	100	19,5	M24	85	18,8	24000	4
PMGX016050	PMGX01/100 - M24 x 115	100	19,5	M24	115	18,8	24000	4
PMGX016055	PMGX01/100 - M24 x 145	100	19,5	M24	145	18,8	24000	4
PMGX016060	PMGX01/100 - M24 x 195	100	19,5	M24	195	18,8	24000	4
PMGX017005	PMGX01/125 - M16 x 60	125	23,5	M16	60	18,8	25000	4
PMGX017010	PMGX01/125 - M16 x 110	125	23,5	M16	110	18,8	25000	4
PMGX017015	PMGX01/125 - M16 x 145	125	23,5	M16	145	18,8	25000	4
PMGX017020	PMGX01/125 - M16 x 175	125	23,5	M16	175	18,8	25000	4
PMGX017025	PMGX01/125 - M20 x 75	125	23,5	M20	75	18,8	25000	4
PMGX017030	PMGX01/125 - M20 x 110	125	23,5	M20	110	18,8	25000	4
PMGX017035	PMGX01/125 - M20 x 145	125	23,5	M20	145	18,8	25000	4
PMGX017040	PMGX01/125 - M20 x 195	125	23,5	M20	195	18,8	25000	4
PMGX017045	PMGX01/125 - M24 x 85	125	23,5	M24	85	18,8	25000	4
PMGX017050	PMGX01/125 - M24 x 115	125	23,5	M24	115	18,8	25000	4
PMGX017055	PMGX01/125 - M24 x 145	125	23,5	M24	145	18,8	25000	4
PMGX017060	PMGX01/125 - M24 x 195	125	23,5	M24	195	18,8	25000	4

MATERIAL

Thermoplastic with a high mechanical resistance.

Heat resistant materials or materials with other resistance grades are available upon demand.

SCREW.

Stainless steel. Brass screws available. For special uses it can be

supplied with customised screws, studs, rods.

COLOUR

Black. Wide range of colours available for suitable quantities.

CERTIFICATIONS
