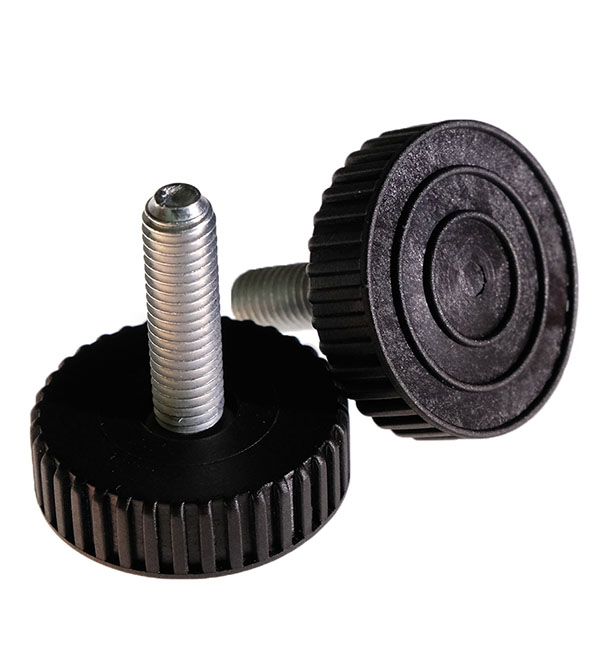

PL2.FOOT WITH SCREW

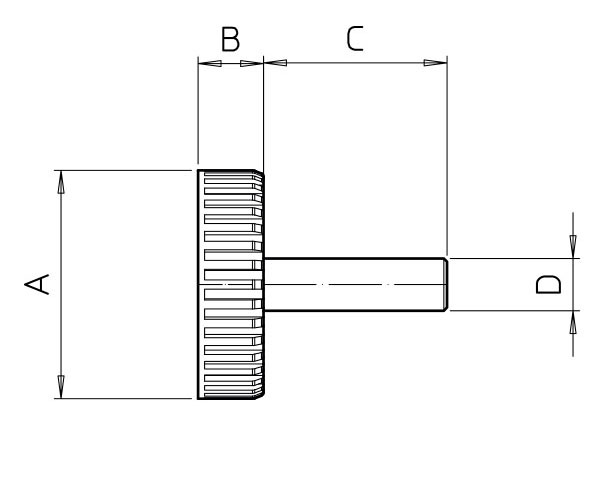

| CODE | ITEM | A | B | C | D | PCS BOX |
|---|---|---|---|---|---|---|
| EMPLS350818 | PL2S/35/M8 x 18 | 35 | 10 | 18 | M8 | 100 |
| EMPLS350823 | PL2S/35/M8 x 23 | 35 | 10 | 23 | M8 | 100 |
| EMPLS350828 | PL2S/35/M8 x 28 | 35 | 10 | 28 | M8 | 100 |
| EMPLS350833 | PL2S/35/M8 x 33 | 35 | 10 | 33 | M8 | 100 |
| EMPLS350838 | PL2S/35/M8 x 38 | 35 | 10 | 38 | M8 | 100 |
| EMPLS350843 | PL2S/35/M8 x 43 | 35 | 10 | 43 | M8 | 100 |
| EMPLS350848 | PL2S/35/M8 x 48 | 35 | 10 | 48 | M8 | 100 |
MATERIAL
Thermoplastic with a high mechanical resistance. Heat resistant materials or materials with other resistance grades are available upon demand.
SCREW.
Zinc passivated steel. Screws made of steel - brass - nylon available. For special uses, items can be supplied with customised screws, studs rods.
COLOUR
Black. Wide range of colours available for suitable quantities.
CERTIFICATIONS
