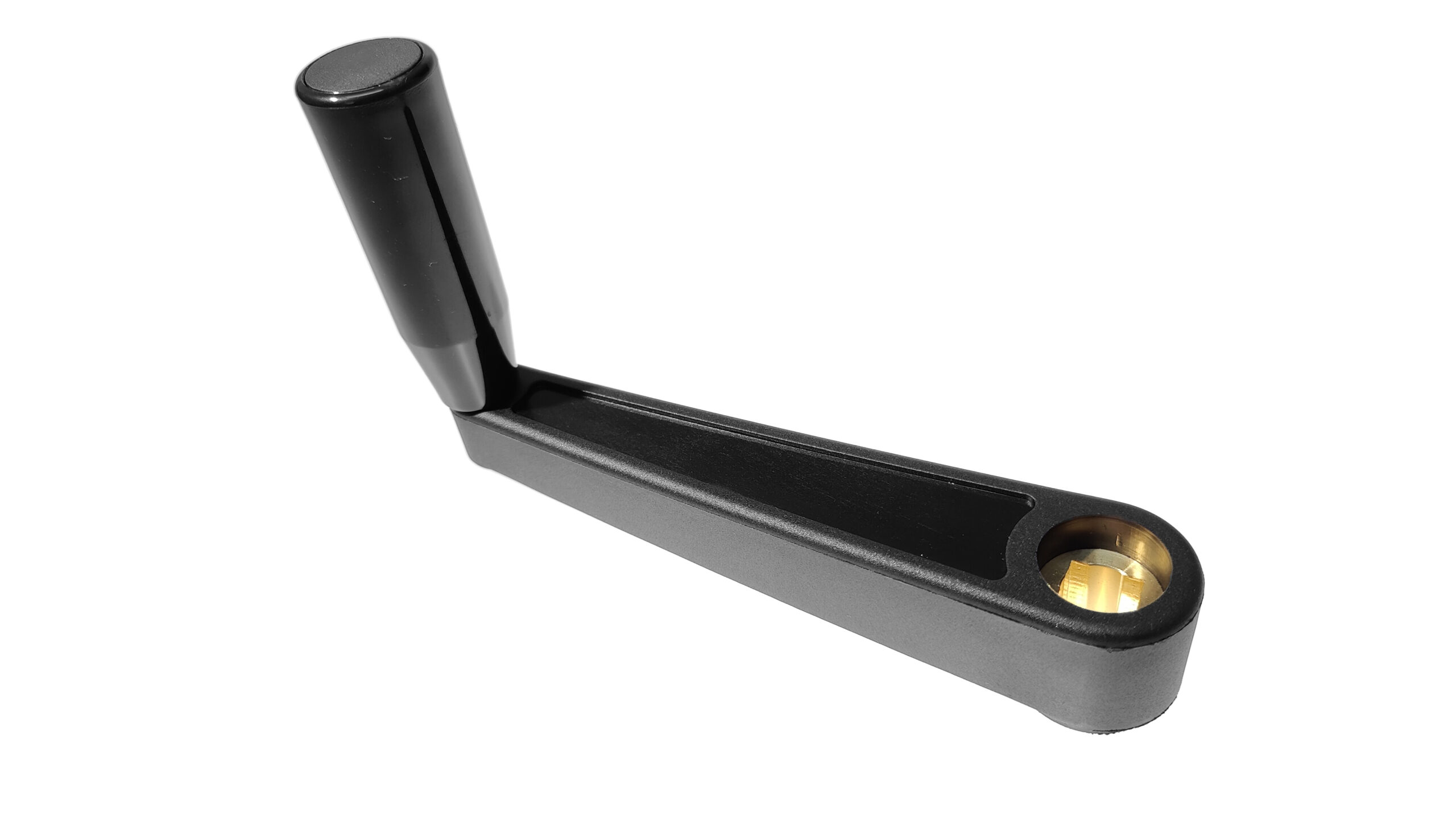

MNV.CRANK HANDLE WITH SQUARE THROUGH HOLE

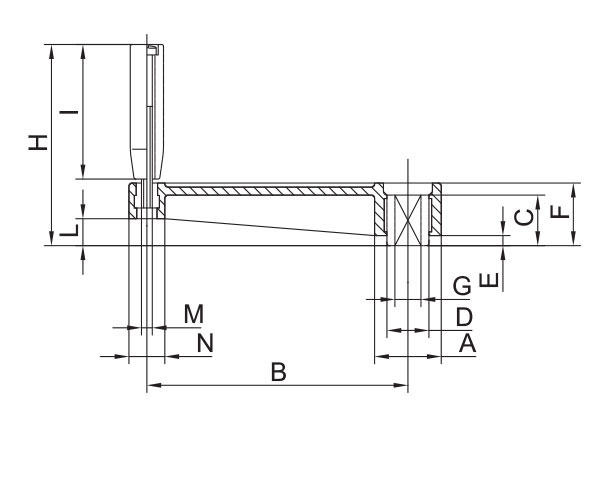

| CODE | ITEM | A | B | C | D | E | F | G | H | I | L | M | N | PCS BOX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMNV150F14 | MNV/150/FQP - 14 | 36 | 150 | 26 | 30 | 5 | 36 | 14 | 125 | 85 | 15 | M10 | 22 | 10 |
MATERIAL
Thermoplastic with a high mechanical resistance. Heat resistant materials or materials with other resistance grades are available upon demand.
STUD
Zinc passivated steel.
HANDGRIP
Thermplastic material
COLOUR
Black. Wide range of colours available for suitable quantities.
CERTIFICATIONS
