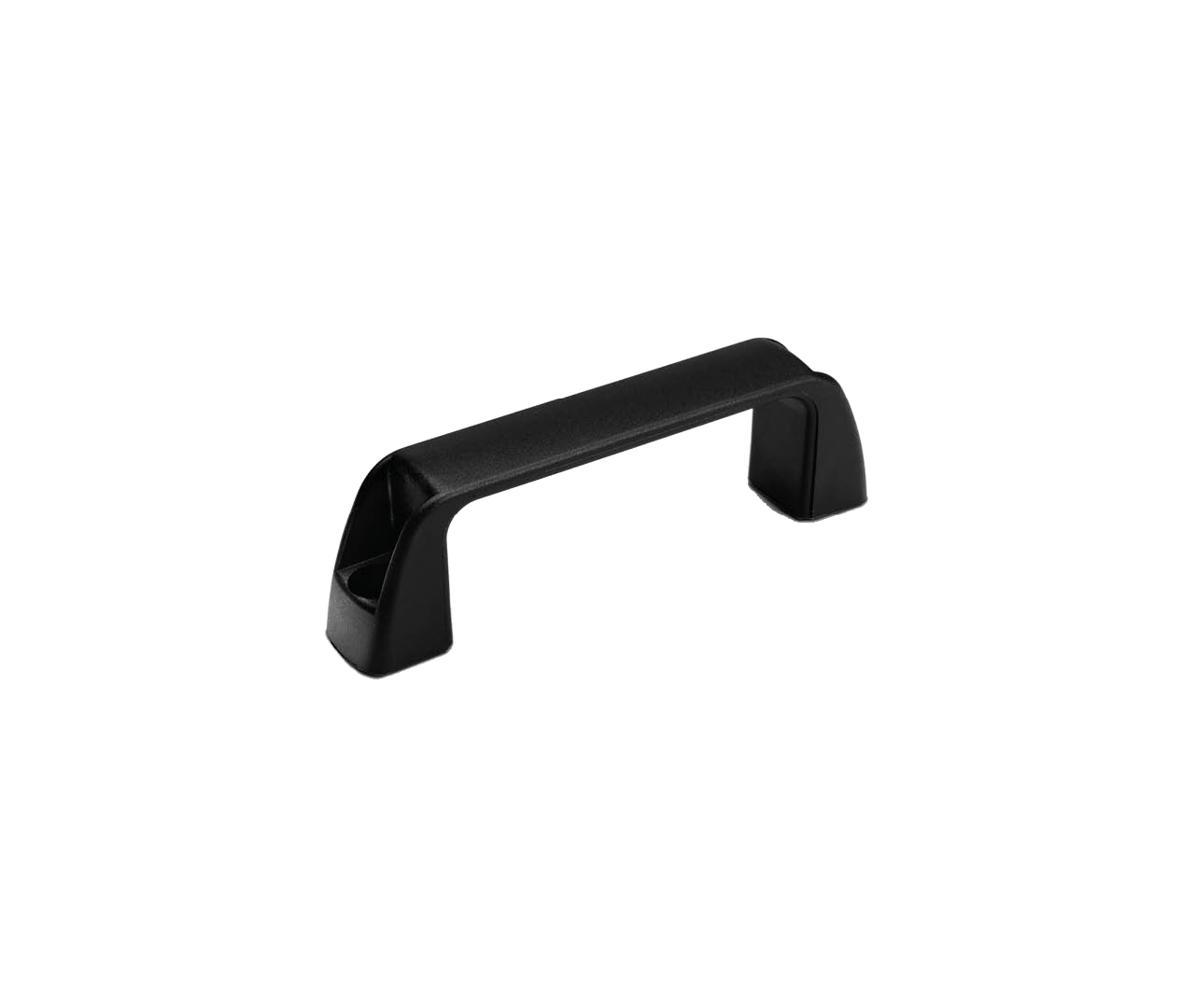

MNG4.HANDLE WITH SMOOTH THROUGH HOLE

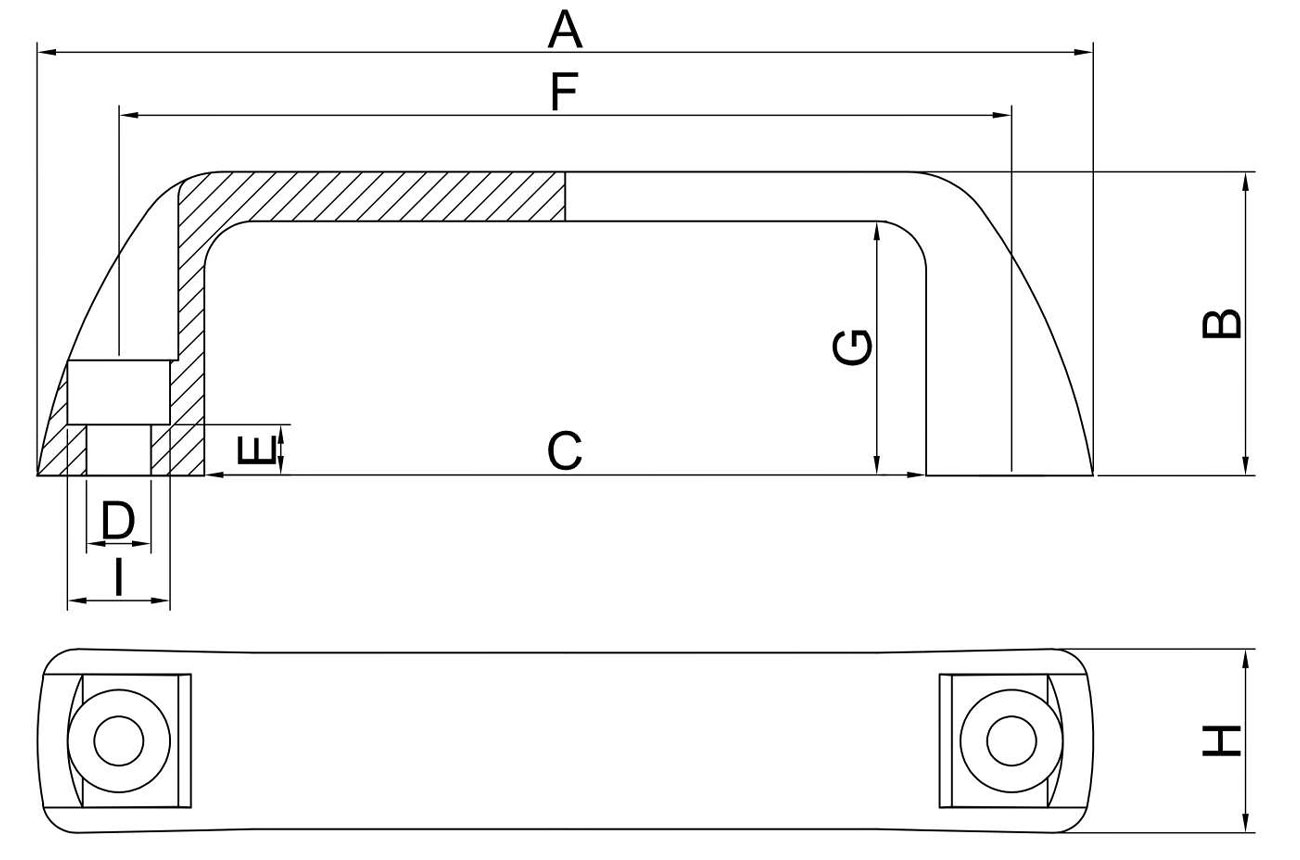

| CODE | ITEM | A | B | C | D | E | F | G | H | I | PCS BOX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EMNG411300 | MNG4/113/FLP - D6 | 113 | 36 | 78 | 6,5 | 6 | 93,5 | 29 | 23 | 10,2 | 100 |
| EMNG413900 | MNG4/139/FLP - D6 | 139 | 41 | 95 | 6,5 | 6 | 117 | 34 | 24,5 | 10,2 | 100 |
| EMNG413910 | MNG4/139/FLP - D8 | 139 | 41 | 95 | 8,5 | 6 | 117 | 34 | 24,5 | 13 | 100 |
| EMNG415600 | MNG4/156/FLP - D6 | 156 | 45 | 107,5 | 6,5 | 9 | 132 | 37 | 27 | 10,2 | 100 |
| EMNG415610 | MNG4/156/FLP - D8 | 156 | 45 | 107,5 | 8,5 | 7 | 132 | 37 | 27 | 13 | 100 |
| EMNG420400 | MNG4/204/FLP - D8 | 204 | 50 | 153 | 8,5 | 8 | 179 | 42 | 28 | 13 | 100 |
MATERIAL
Thermoplastic with a high mechanical resistance. Heat resistant materials or materials with other resistance grades are available upon demand.
COLOUR
Black. Wide range of colours available for suitable quantities.
CERTIFICATIONS
