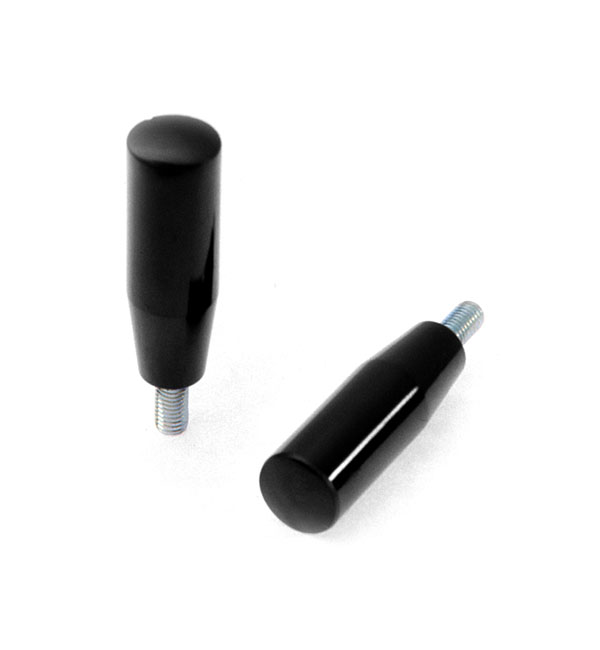

M1.GRIP WITH FIXED PIN

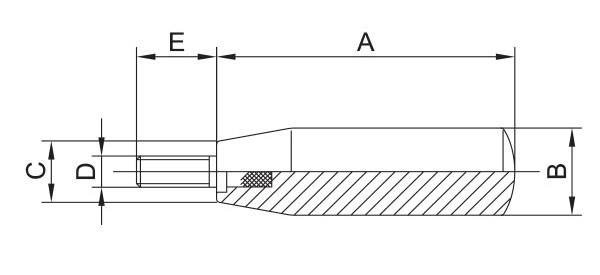

| CODE | ITEM | A | B | C | D | E | PCS BOX |
|---|---|---|---|---|---|---|---|
| EM31406150 | M1/40/V - M6x15 | 40 | 17 | 12 | M6 | 15 | 50 |
| EM31506150 | M1/50/V - M6x15 | 50 | 21 | 17 | M6 | 15 | 50 |
| EM31508150 | M1/50/V - M8x15 | M8 | 15 | 50 | |||
| EM31558150 | M1/55/V - M8x15 | 55 | 23 | 18 | M8 | 15 | 50 |
| EM31651015 | M1/65/V - M10x15 | M10 | 15 | 50 | |||
| EM31851015 | M1/85/V - M10x15 | 85 | 28 | 21 | M10 | 15 | 50 |
| EM31851215 | M1/85/V - M12x15 | M12 | 15 | 50 | |||
| EM32101015 | M1/100/V - M10x15 | 100 | 28 | 20 | M10 | 15 | 50 |
| EM32101220 | M1/100/V - M12x20 | M10 | 15 | 50 |
MATERIAL
Thermosetting.
SCREW.
Zinc passivated steel.
Screws made of steel - brass - nylon available
For special uses, items can be supplied with customised screws, studs rods.
STUD
Zinc passivated steel.
COLOUR
Black
CERTIFICATIONS
